Couplers and plugs are the cheapest parts of an air system and the ones people get wrong most often. Buy the wrong interchange and nothing fits. Buy the right one and every tool in the garage snaps on in a second. Here is how to get it right the first time.
Our top picks at a glance
Pick one interchange and never mix
A coupler (the female half with the sleeve) only accepts a plug (the male half) of the same interchange profile. Brands do not matter; profile does. In the US you will meet three:
- Industrial (I/M, "M-style", Type D). The default. Every hardware store stocks it, every cheap kit is this. If you are starting from zero, standardize here.
- Automotive / Tru-Flate (Type C). The tire-shop standard. Larger nose. Common on compressors sold through automotive channels.
- ARO 210 (Type A). Older industrial equipment. Looks almost like Industrial, does not fit Industrial. The most common wrong purchase we see.
If you inherit a mix, put a universal coupler on the hose; it accepts all three plug styles. Universals cost more and have more moving parts, so treat them as the fix, not the plan.
Where each piece goes
- Compressor outlet: coupler (female).
- Hose, both ends: plug on the compressor end, coupler on the tool end.
- Every tool: plug.
That way any tool connects to any hose, and the hose connects to any compressor. A 15-piece kit covers a two-car garage with tools to spare.
Three interchanges, one look-alike problem
| Interchange | Also called | Where you meet it | Fits the others? |
|---|---|---|---|
| Industrial (I/M) | M-style, Type D, Milton M | Hardware stores, every budget kit | No |
| Automotive | Tru-Flate, Type C | Tire shops, automotive compressors | No |
| ARO 210 | Type A | Older industrial equipment | No |
A universal coupler accepts all three plug styles. Nothing else crosses over.
What we'd buy, and why
Kobalt 3-Piece Coupler and Plug Kit, 1/4" Industrial
| Contents | 1 coupler, 2 plugs |
|---|---|
| Interchange | Industrial (I/M) |
| Body | 1/4" |
| Material | Brass and steel |
| Model | SGY-AIR28NB |
One coupler, two plugs, Industrial interchange. Enough to finish a hose and one tool, or to put the right end on a new reel.
Good: Cheapest correct answer for a single hose.
Watch out: You will be back for more plugs the second tool you buy.
Check price at Lowe's · ~$10

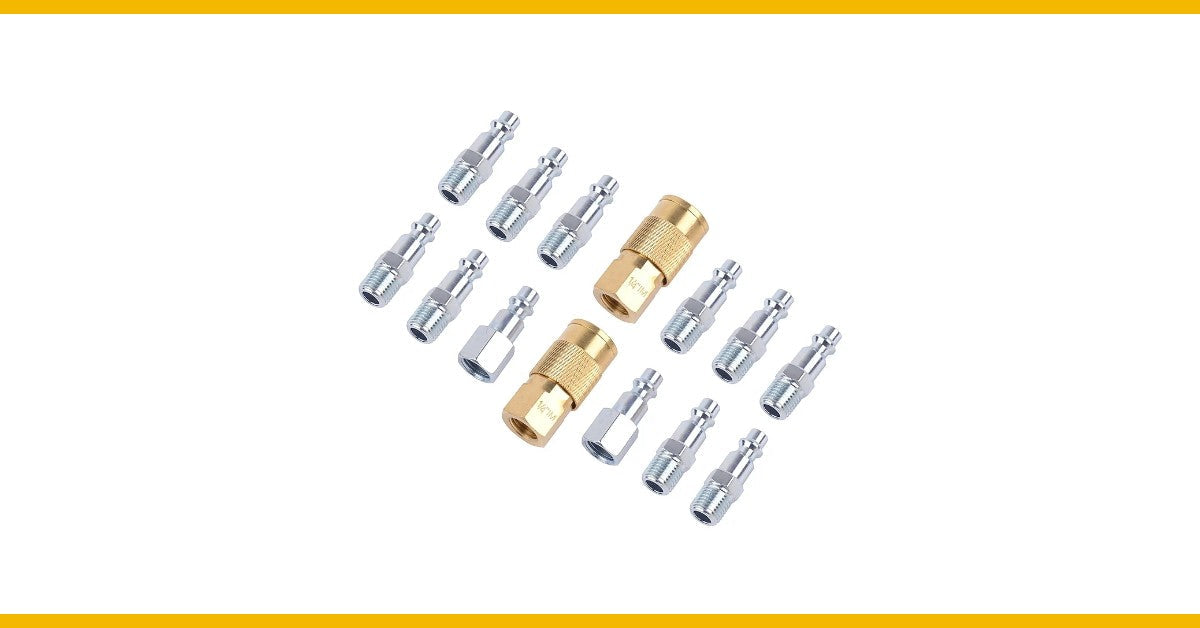

Kobalt 15-Piece Plug and Coupler Kit
| Contents | Couplers and plugs, male and female NPT |
|---|---|
| Interchange | Industrial (I/M) |
| Body | 1/4" |
| Material | Brass and steel |
| Model | SGY-AIR252 |
Couplers and plugs in male and female NPT so you can finish the compressor, two hoses and a drawer of tools in one go.
Good: One purchase covers a whole garage; mixed thread genders mean no adapters.
Watch out: Hardware-store sleeves loosen with daily use. Fine for weekends, not a shop.
Check price at Lowe's · ~$19 (reg. $25)
Kobalt 18-Piece Air Tool Accessory Kit
| Contents | Blow gun, tire chuck, inflation needles, couplers, plugs |
|---|---|
| Interchange | Industrial (I/M) |
| Body | 1/4" |
| Model | SGY-AIR200 |
Blow gun, tire chuck, inflation needles and a few couplers and plugs. Good first purchase with a new compressor.
Good: Everything a first-time compressor owner needs in one box.
Watch out: Only a few couplers; you will still want the 15-piece kit.
Check price at Lowe's · ~$20
Foster 3 Series, Made in USA
| Interchange | Industrial (I/M), same as the kits above |
|---|---|
| Body | 1/4" |
| Materials | Steel, brass, 303 stainless |
| Sleeve | Manual and automatic couplers |
| Standards | ISO 6150-B, ANSI/NFPA T3.20.14 |
If you connect and disconnect all day, run a shop, or are tired of hearing the compressor cycle to feed a hissing coupler, this is the upgrade. Same interchange as every kit above, so nothing else has to change.
Good: Tighter tolerances, replaceable seals, decades of service.
Watch out: Three to four times the price per piece, and you buy them individually rather than as a kit.
Shop Foster 3 Series at hpcouplers · from about $8 eachOther sizes and interchanges at our sister store
- Foster 4 Series (3/8") and 5 Series (1/2") for higher-flow tools and larger hose.
- Foster TF Series for Automotive/Tru-Flate shops and 210 Series for ARO equipment.
- Foster SV safety-vent couplers, which bleed pressure before the plug releases so the hose does not whip.
- All pneumatic quick couplers if you know the part number you need.
Thread sealant and tightening
Couplers and plugs seal on tapered NPT threads, so they need PTFE tape or paste on the threads, two to three wraps of tape in the direction of tightening. Snug plus a quarter turn. Over-tightening cracks brass bodies and does nothing for the seal.
Common questions
Will a 3/8" plug fit a 1/4" coupler? No. Body size is part of the interchange. Most home garages run 1/4" body throughout, with 3/8" hose if they want more flow.
Why does my new plug leak in the coupler? Wrong interchange seated halfway, a worn coupler seal, or a plug with a nicked nose. Check the interchange first.
Steel, brass or stainless? Steel for a shop floor. Brass where sparks are a concern or the air is wet. Stainless where it is outdoors or in washdown.
Standardize on Industrial interchange. Buy the Kobalt 15-piece kit to outfit the garage, and when the first coupler starts hissing, replace it with a Foster 3 Series and never think about it again.
