Couplers and plugs come in steel, brass, a brass-steel combination and stainless. Material has nothing to do with which style fits; that is the interchange (Industrial, ARO, Lincoln and so on). Material decides how long the parts last and where they can live. Here is how to choose.
Coupler materials at a glance
| Steel | Brass | Brass/steel | Stainless | |
|---|---|---|---|---|
| Wear resistance | Best | Fair | Good | Very good |
| Corrosion resistance | Poor once plating wears | Good | Good | Best |
| Price | $ | $$ | $$ | $$$$ |
| Best for | Plugs, dry shops | Water, humid air | Most garages and shops | Washdown, food, chemicals, marine |
Each material, honestly
Steel (plated)
Hardened, plated steel is the toughest material for the parts that take the abuse: the plug nose and the locking balls. A steel plug outlasts a brass plug in a coupler that gets connected dozens of times a day. The catch is corrosion. Once the plating wears through, steel rusts, especially on a compressor that is never drained and pushes wet air.
- Best wear life on plugs
- Lowest cost per connection
- Standard on most industrial plugs
- Rusts once plating wears
- Not for washdown or outdoor wet use

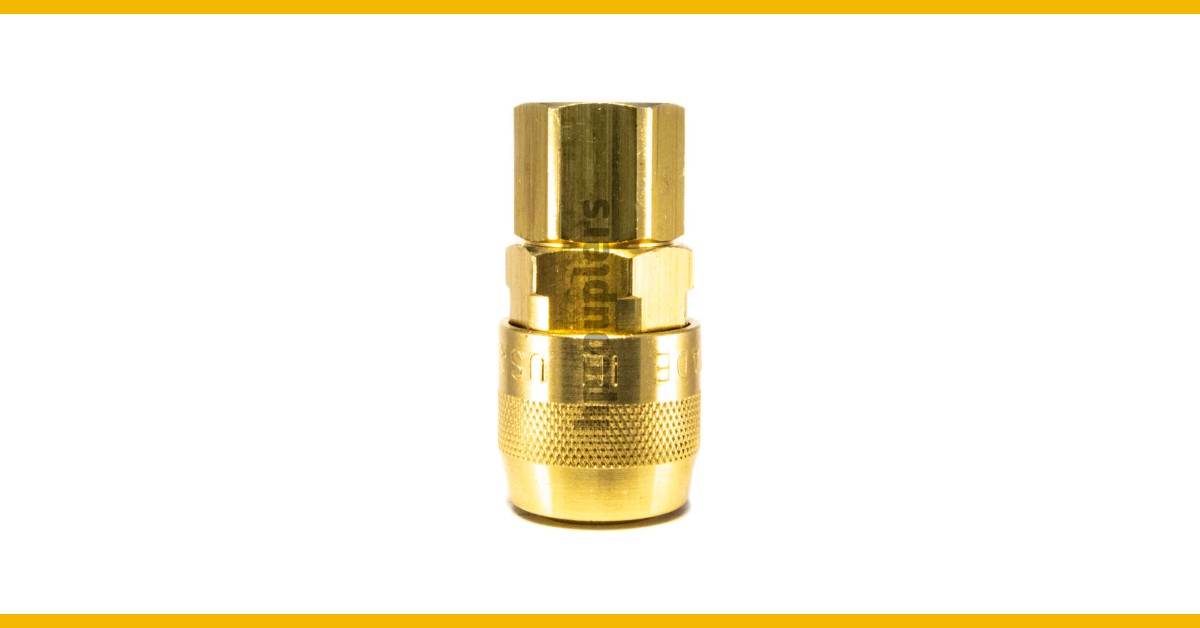

Brass
Brass does not rust, machines cleanly and seals well on threads. That is why most coupler bodies are brass. It is softer than steel, so an all-brass plug wears faster at the groove where the balls lock. Brass is the right call for water, humid shops, and anywhere a steel part would rust in place.
- Does not rust
- Good thread sealing
- Standard for water and wet air
- Softer; plugs wear faster
- Not for aggressive chemicals
Brass body with steel internals
The most common industrial coupler is a brass body with a steel sleeve and steel locking balls. You get brass corrosion resistance where the air sits and steel wear resistance where the plug locks. Pair it with a steel plug and you have the setup most shops run for decades.
- Corrosion and wear covered
- The industry default
- Widest selection
- Still not for washdown or chemicals
Stainless (303 or 316)
Stainless resists corrosion from water, cleaning chemicals and salt air, and it is what food plants, marine work and washdown areas specify. It also costs three to four times as much as brass-steel. In a dry garage it buys you nothing; in a wet or caustic environment it is the only thing that lasts.
- Best corrosion resistance
- Required in food and washdown
- Strong and wear resistant
- Three to four times the price
- Overkill for a dry garage
Can a brass coupler take a steel plug?
Yes, and it is the usual pairing. Material does not affect fit; interchange and body size do. A steel plug in a brass/steel coupler is the most common setup in industry because the plug is the part that wears and steel wears slowest. If you are not sure what interchange you have, our interchange finder sorts it out in three questions.
Good examples of each
Matching plugs: Foster 11-3B brass plug ($3.79) or the IM25 stainless plug ($12.95). The full Foster 3 Series has every thread size and material.
Brass/steel coupler and steel plugs for a garage or shop. All brass where the air is wet or the line carries water. Stainless only for washdown, food, chemical or marine work, where nothing else lasts.
