OUR VERDICT

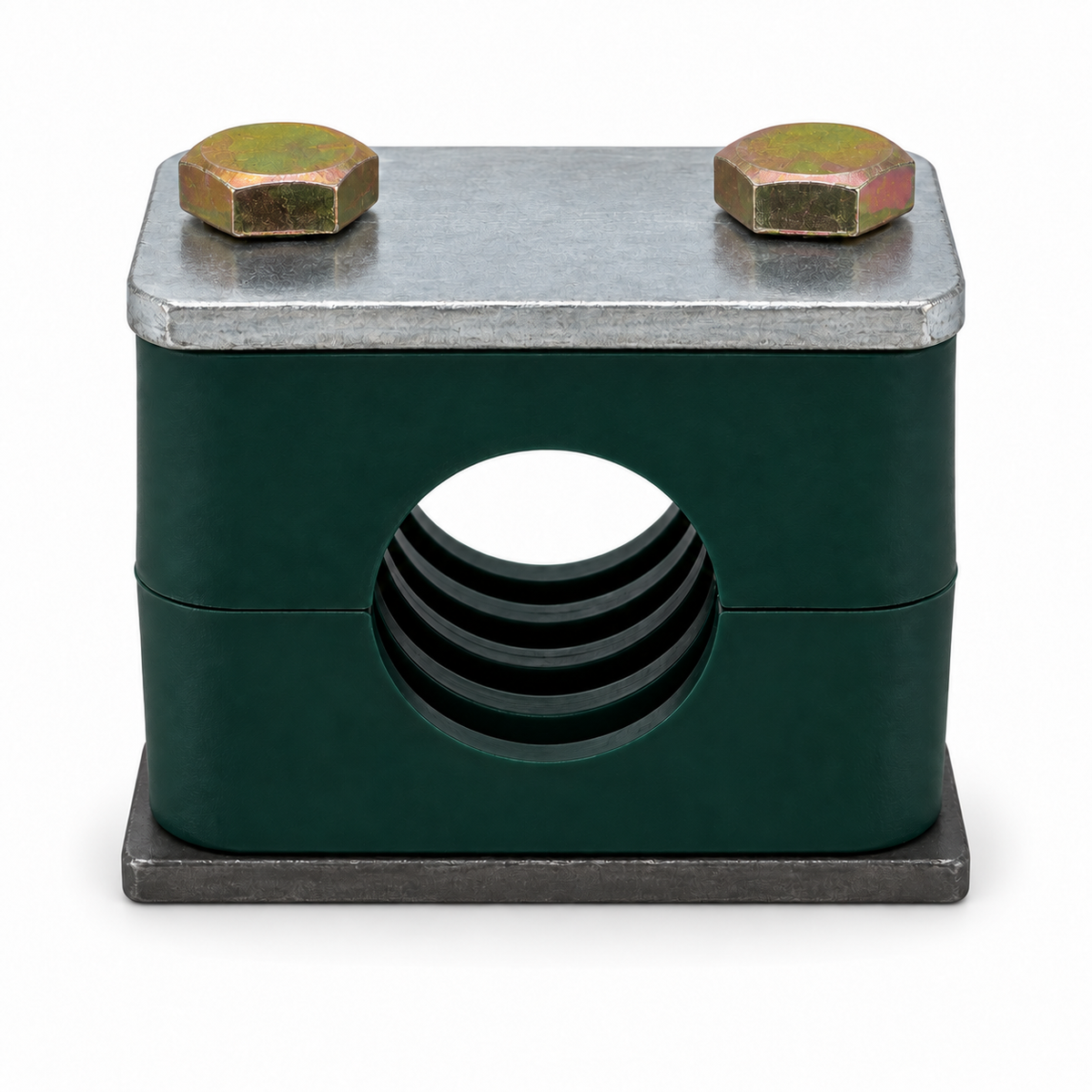

ZSI Beta Standard clamps hold a single hydraulic tube or pipe run in place. Two identical green polypropylene halves grip the line, and their ribbed inner surface soaks up vibration and shock, while a steel weld plate mounts the set to the frame. Buy them for hydraulic and process lines up to 1,500 psi without heavy surge loads. Skip them for high-pressure or surge service, where a heavy-duty clamp is the better fit.
WHAT WE LIKE
- Ribbed polypropylene cushion absorbs vibration and shock
- Identical upper and lower halves, simple to install
- Steel weld plate mounts straight to the frame
WORTH NOTING
- Standard duty: for systems under 1,500 psi without heavy surge
- Polypropylene cushion is rated -22°F to 194°F
Specifications
| Series | Beta S3 |
|---|---|
| Temperature range | -22°F to 194°F |
| Clamp family | ZSI Beta Standard |
| Clamp type | Pipe clamp, weld plate mount |
| Clamp range | 1/2" pipe |
