OUR VERDICT

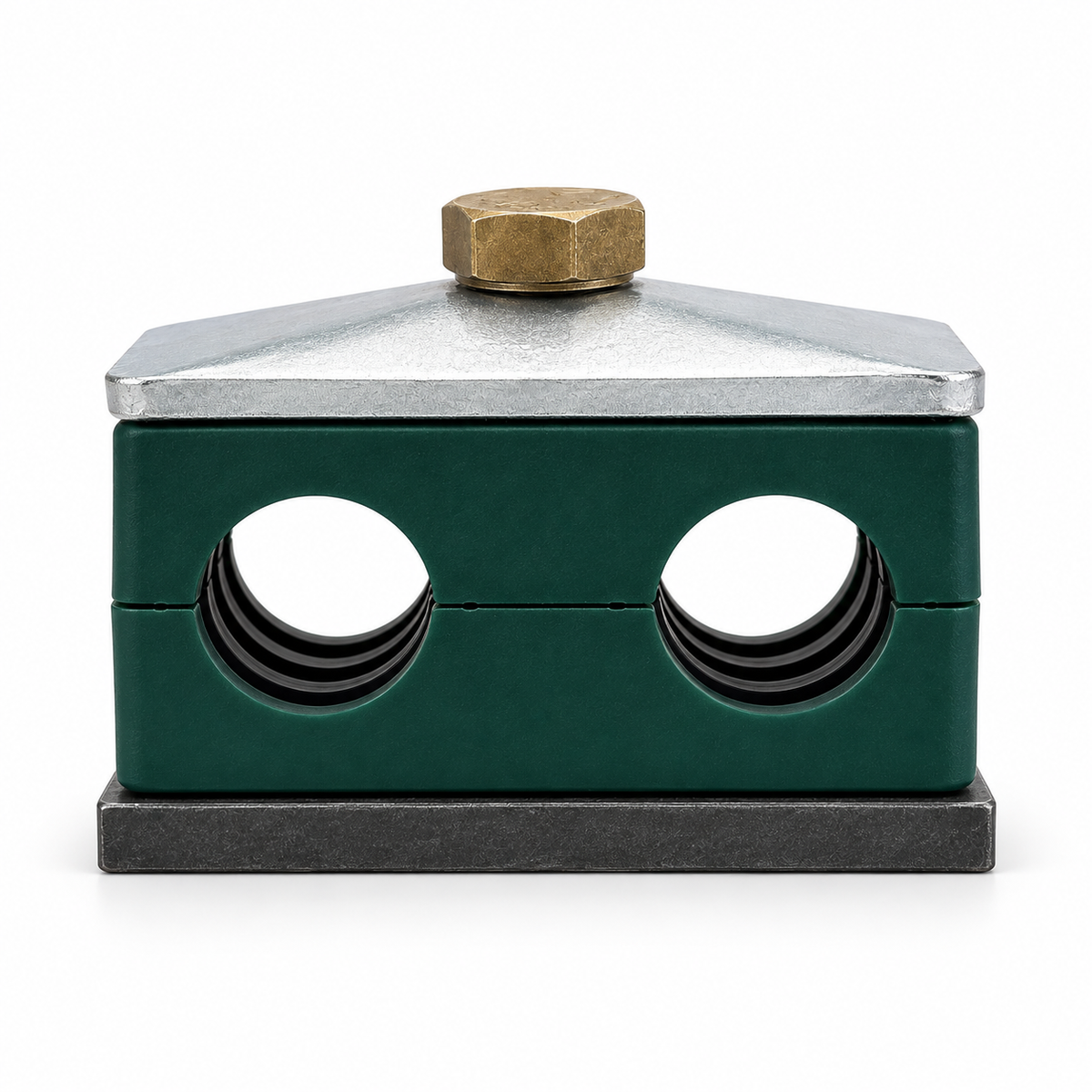

ZSI Beta Twin clamps hold two hydraulic or process lines of the same size side by side. Two identical green polypropylene halves grip the lines, and their ribbed inner surface soaks up vibration and shock, while a steel weld plate mounts the set to the frame. Buy them for parallel supply and return runs up to 1,500 psi without heavy surge loads. Skip them for high-pressure or surge service, where a heavy-duty clamp is the better fit.
WHAT WE LIKE
- Ribbed polypropylene cushion absorbs vibration and shock
- Identical upper and lower halves, simple to install
- Steel weld plate mounts straight to the frame
WORTH NOTING
- Standard duty: for systems under 1,500 psi without heavy surge
- Polypropylene cushion is rated -22°F to 194°F
Specifications
| Series | Beta T2 |
|---|---|
| Temperature range | -22°F to 194°F |
| Clamp family | ZSI Beta Twin |
| Clamp type | Twin Tube clamp, weld plate mount |
| Clamp range | Two 1/2" OD tubes |
